Teltonika IoT Network Architecture
A three-layer IoT topology connecting BLE beacons and sensors through FMM gateway trackers to cloud platforms — delivering real-time asset tracking, environmental monitoring, and fleet management over LTE/4G/NB-IoT.
Overview
The Teltonika IoT Network Architecture deployed by Enterprise Systems Australia consists of three interconnected layers. At the base, BLE beacons and sensors (EYE Beacon, temperature/humidity sensors, magnetic/movement detectors, asset beacons, and custom third-party BLE devices) broadcast continuously using iBeacon, Eddystone, and Teltonika EYE protocols within a 10–80 metre range.
The middle layer comprises FMM gateway trackers (FMM880 and FMM230) that scan for and collect beacon data, aggregate sensor readings, and transmit everything to the cloud via LTE 4G Cat M1 or NB-IoT cellular connectivity. The top layer is the cloud platform — FOTA WEB for firmware management, ES Tracking for universal telematics, ES Tracking for fleet tracking, and ES TMS for transport management — where data is stored, processed, and made available to ES ERP.

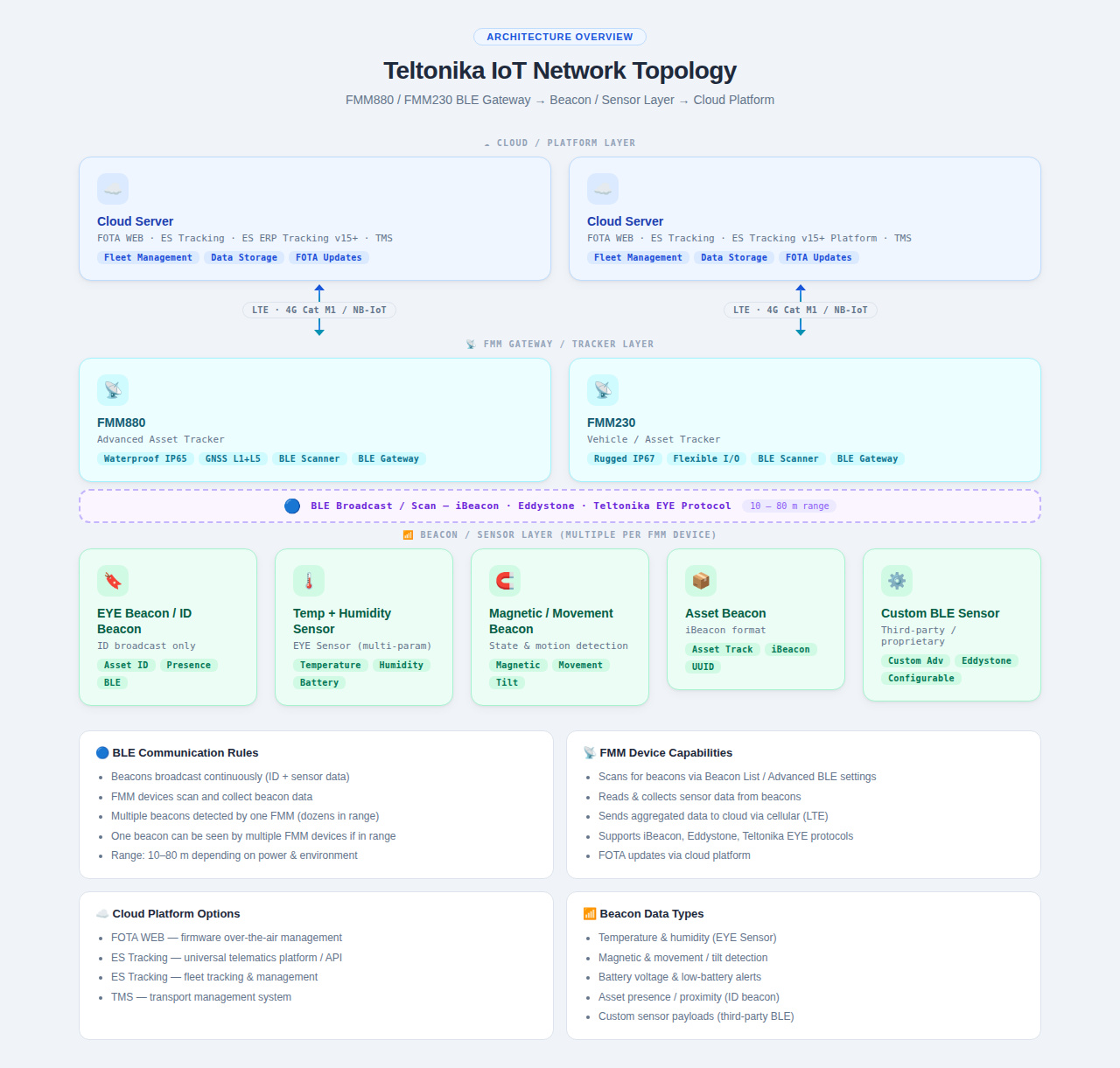

🗺️ Network Topology Diagram
📡 Network Layers
☁️ Cloud / Platform Layer
Cloud servers running FOTA WEB (firmware over-the-air management), ES Tracking (universal telematics platform and API), ES Tracking (fleet tracking and management), and ES TMS (transport management system). Receives aggregated data from FMM devices via LTE cellular uplink. Provides fleet management dashboards, data storage, analytics, and remote firmware updates for all field devices.
📡 FMM Gateway / Tracker Layer
FMM880 — Advanced asset tracker with IP65 waterproof rating, dual-band GNSS (L1+L5), BLE scanner, and BLE gateway functionality. FMM230 — Rugged vehicle/asset tracker (IP67) with flexible I/O, BLE scanner, and BLE gateway. Both models scan for beacons, collect sensor data, and transmit to cloud via LTE 4G Cat M1 or NB-IoT.
🔔 Beacon / Sensor Layer
Five beacon types: EYE Beacon (ID broadcast, presence detection), Temperature & Humidity Sensor (multi-parameter EYE Sensor), Magnetic/Movement Beacon (state and motion/tilt detection), Asset Beacon (iBeacon format with UUID), and Custom BLE Sensor (third-party/proprietary with configurable advertisement payloads). Multiple beacons per FMM device, 10–80m BLE range.
📋 FMM Device Comparison
Technical Specifications
Connectivity
- ✓ LTE 4G Cellular
- ✓ Cat M1 / NB-IoT
- ✓ BLE 5.0 Scanner
- ✓ Dual-band GNSS L1+L5
BLE Protocols
- ✓ iBeacon
- ✓ Eddystone
- ✓ Teltonika EYE Protocol
- ✓ Custom Advertisement
Sensor Data
- ✓ Temperature & Humidity
- ✓ Magnetic / Movement / Tilt
- ✓ Battery Voltage & Alerts
- ✓ Asset Presence / Proximity
Cloud Platforms
- ✓ FOTA WEB (Firmware OTA)
- ✓ ES Tracking (Telematics API)
- ✓ ES Tracking (Fleet Tracking)
- ✓ ES TMS (Transport Mgmt)
